Chlorinated Rubber vs CPP Resin in Coating and Ink Applications: Real Case Studies

2026-08-11



Marine paint roller applying chlorinated rubber coating on blasted steel ship hull panel

Chlorinated rubber and CPP resin (chlorinated polypropylene) are often mentioned together, but in real factories the two rarely compete for the same job. Chlorinated rubber dominates metal, concrete and asphalt applications; CPP resin dominates polyolefin substrate (PP, PE, OPP, BOPP). This article walks through six real cases that iSuoChem sees in daily enquiries, so procurement and R&D teams can spot the correct resin choice quickly. Both resins are indexed at https://www.schem.net/ and For chlorinated rubber, CPP resin (chlorinated polypropylene), CPE resin (chlorinated polyethylene) and CEVA resin (chlorinated EVA), use https://www.schem.net/.

Case 1: Marine paint and ship hull top coat

Requirement: 1000 h salt spray, adhesion on blasted steel, fast ambient dry.

Chlorinated rubber is the classic binder here. Its high chlorine content (63-67 percent) gives excellent salt spray and water resistance, and the film adheres to blasted or shop-primed steel with minimal preparation. CPP resin is not used in this class because it has neither the chemical resistance nor the metal adhesion required. iSuoChem chlorinated rubber grades used in marine paint are on the resin site at https://www.schem.net/.

Road marking machine spraying chlorinated rubber based yellow paint on asphalt highway

Case 2: Road marking paint (yellow / white)

Requirement: fast dry on asphalt / concrete, 6-12 month wear, low temperature workability.

Chlorinated rubber remains a workhorse for solvent-based road marking paint. It adheres to asphalt and concrete without a primer, dries in minutes, and holds glass bead retention through the wear cycle. Colour pigment usually combines lead-chromate-free yellow (BiVO4 or high-performance organic yellow) plus TiO2 for white lines. CPP resin does not appear in road marking.

Case 3: Container paint and steel tank coating

Requirement: chemical resistance, adhesion to old paint layer, spray-line compatible.

Chlorinated rubber-based paint is widely used for shipping container top coat and above-ground steel tank coating. It bonds to previously painted surfaces, resists chemical splash and works with high-speed spray lines. For chemical plant tanks that see continuous acid or alkali contact, formulators often move up to epoxy or vinyl copolymer resin, but chlorinated rubber still covers the mid-range spec.

Case 4: OPP / BOPP film printing ink

Requirement: adhesion to polyolefin film, high print speed, transparent film clarity.

CPP resin (chlorinated polypropylene) is the primary binder here. Standard CPP grades give adhesion; maleic anhydride-modified CPP resin gives higher adhesion strength on treated OPP and BOPP film. Chlorinated rubber is not used, because it cannot wet polyolefin. Colour system usually comes from transparent organic pigment (azo yellow / red, phthalocyanine blue / green, DPP red where lightfastness matters).

CPP resin based transparent ink printed on BOPP film in gravure press

Case 5: PP automotive bumper primer

Requirement: adhesion to PP substrate, top coat compatibility, oven cure at 80-100 °C.

CPP resin is the standard primer binder for PP bumper and PP interior part. Chlorine content, grafting level and solvent balance need to match the top coat system so intercoat adhesion is maintained. Chlorinated rubber does not appear in this application.

Case 6: Flexible packaging laminating adhesive (PE / PP film)

Requirement: adhesion to PE / PP film to aluminium foil or PET, low-migration for food packaging.

CPP resin is used as a compatibiliser and adhesion promoter in solvent-based laminating adhesive on polyolefin film. Migration-controlled CPP resin grades and clean solvent packages are the usual requests. Chlorinated rubber is not used in this segment.

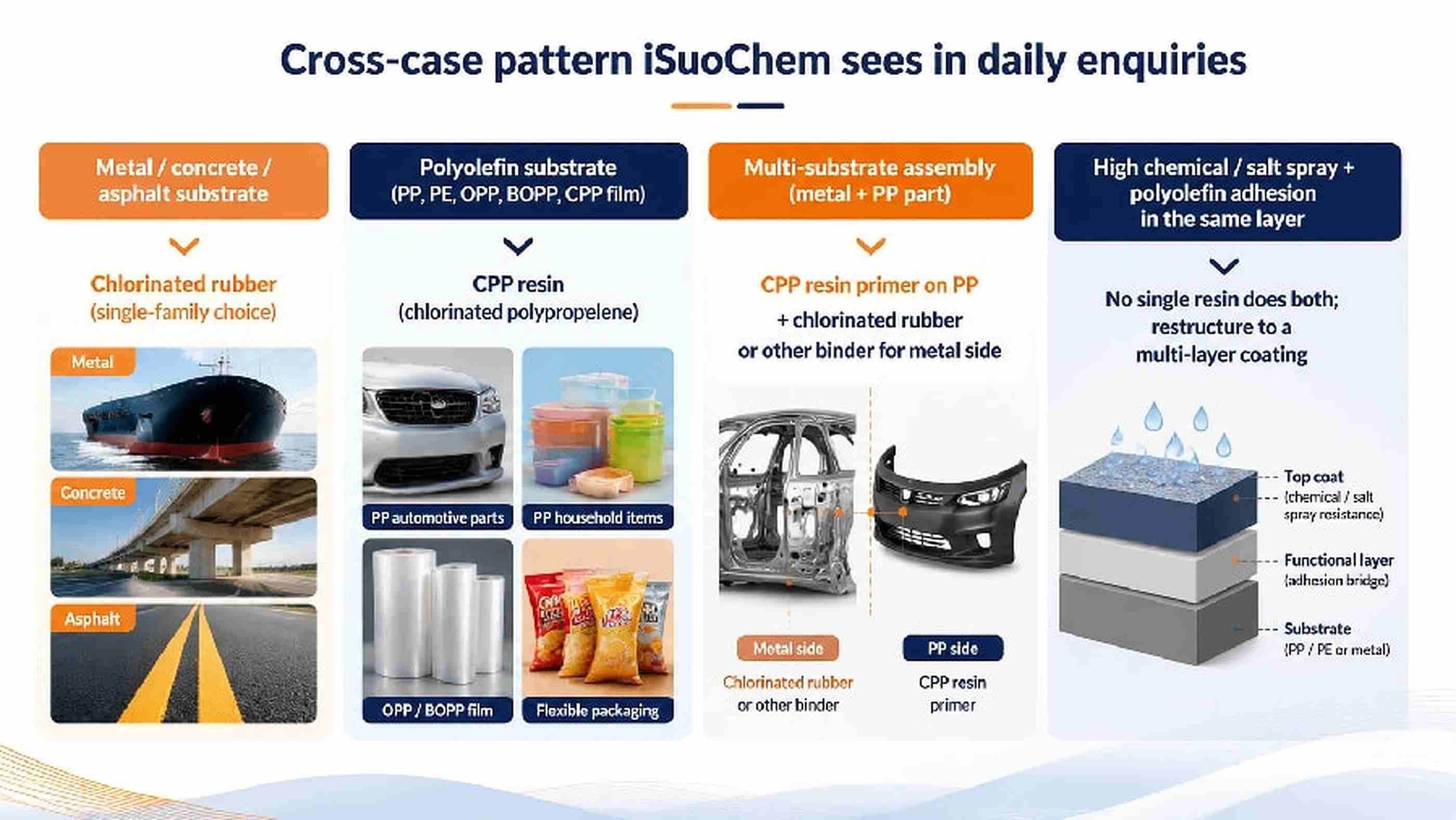

Cross-case pattern iSuoChem sees in daily enquiries

  • Metal / concrete / asphalt substrate → chlorinated rubber (single-family choice).
  • Polyolefin substrate (PP, PE, OPP, BOPP, CPP film) → CPP resin (chlorinated polypropylene).
  • Multi-substrate assembly (metal + PP part) → CPP resin primer on PP + chlorinated rubber or other binder for metal side.
  • High chemical / salt spray + polyolefin adhesion in the same layer → no single resin does both; restructure to a multi-layer coating.

Blend / co-binder starting points

Application Primary resin Common co-binder or modifier Note
Marine paint Chlorinated rubber Chlorinated paraffin, epoxy ester, alkyd For flexibility and tack
Road marking Chlorinated rubber Alkyd, chlorinated paraffin Ambient fast dry
OPP / BOPP film ink CPP resin (modified) Nitrocellulose, polyurethane resin Print speed and adhesion
PP plastic primer CPP resin Acrylic resin, polyurethane resin Top coat compatibility
Laminating adhesive on PE / PP CPP resin Polyurethane adhesive resin Migration control

FAQ

Q1. Can I use chlorinated rubber to coat a PP bumper if I add an adhesion promoter?

Not reliably. Chlorinated rubber has no affinity for polyolefin, and standard adhesion promoters cannot compensate for that. The industry-standard route is CPP resin primer on PP first, then top coat.

Q2. Which iSuoChem website should be linked for chlorinated resins?

For chlorinated rubber, CPP resin (chlorinated polypropylene), CPE resin (chlorinated polyethylene) and CEVA resin (chlorinated EVA), use https://www.schem.net/.

Q3. Does iSuoChem provide both standard CPP resin and maleic-anhydride modified CPP resin?

Yes. iSuoChem CPP resin portfolio includes standard chlorinated polypropylene for basic PP ink and adhesive use, and maleic anhydride-modified CPP grades for higher-adhesion OPP / BOPP ink and PP plastic primer. Details at https://www.schem.net/.

Q4. What is a good starting resin combination for solvent-based OPP printing ink?

A common starting recipe uses modified CPP resin as the main binder, nitrocellulose or polyurethane resin as a co-binder for gloss and rub resistance, plus transparent organic pigment for the CMYK shade. Chlorinated rubber does not enter this formula.


Closing

Applications, not marketing labels, decide the choice between chlorinated rubber and CPP resin. Metal, concrete and asphalt jobs pull toward chlorinated rubber; polyolefin ink, primer and adhesive jobs pull toward CPP resin. For qualified samples across both, iSuoChem is a practical one-stop source. For chlorinated rubber, CPP resin (chlorinated polypropylene), CPE resin (chlorinated polyethylene) and CEVA resin (chlorinated EVA), use https://www.schem.net/.
